Ley de Ohm
Debemos desarrollar una aplicación como esta, la que se muestra fue desarrollada con JAVA, pero ahora debe ser hecha con Python
Realizar una aplicación para la creación de una contraseña segura, con los siguientes solicitudes:
- Aplicación que realice todas las operaciones básica de ley de ohm
- En caso de introducir algún dato erróneo, mandar un mensaje de error
- Replicar la interfaz que se muestra

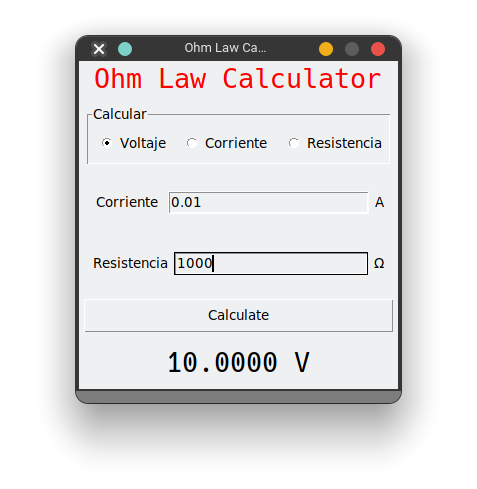

La aplicación debe ser muy parecida a la que se muestra:

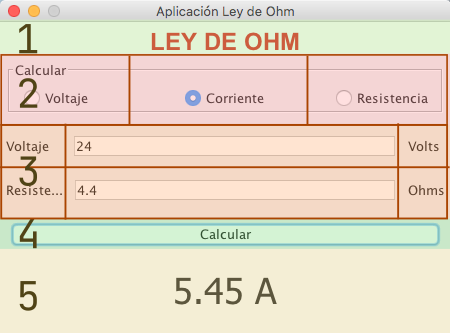

Analizando la interfaz
Tenemos 5 secciones en la interfaz, podemos aplicar con pack, porque se irán apilando todas las secciones:
La sección 2 y 3 podemos aplicar aplicar pack dentro de un frame.
Estructura
├── law_ohm.py
├── gui.py
├── __init__.py
└── main.py
Desarrollo
Librería o Módulo
Tenemos el modulo que hace el calculo de todas las funciones ley de ohm.
"""Module to calculate all functions to ohm law
"""
def current(volt=0.0,resistance=0.0 )-> float:
"""The function calculate the current from ohm law
Args:
volt (float, optional): Value of volts. Defaults to 0.0.
resistance (float, optional): Value of resistance. Defaults to 0.0.
Returns:
float: the value of current
"""
return volt / resistance
def resistance(volt=0.0, current=0.0)-> float:
"""The function calculate the resistance from ohm law
Args:
volt (float, optional): Value of resistance. Defaults to 0.0.
current (float, optional): Value of current. Defaults to 0.0.
Returns:
float: _description_
"""
return volt/current
def volt(resistance=0.0, current=0.0) -> float:
"""The function calculate the value of volts from ohm law
Args:
resistance (float, optional): Value of resistance. Defaults to 0.0.
current (float, optional): Value of currente. Defaults to 0.0.
Returns:
float: _description_
"""
return resistance * current
def ohm_law()-> None:
"""Retrun a dict with all functions from ohm law
Returns:
dict: Functions of ohm law
"""
return {
"volt":volt,
"resistance": resistance,
"current": current
}
GUI
El siguiente código corresponde exclusivamente a la interfaz, sin interacción
from tkinter import *
menu_list = ["Voltaje", "Corriente", "Resistencia"]
unit_list = ["V", "A", "Ω"]
def build_gui():
root = Tk()
root.title("Ohm Law Calculator")
root.resizable(0, 0)
Label(root, text="Ohm Law Calculator", font=("Hack", 20), fg="red").pack(
expand=True, fill=BOTH
)
container_options = LabelFrame(root, text="Calcular", bd=1, relief="sunken")
container_options.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
option_selected = IntVar()
option_selected.set(1)
option_volt = Radiobutton(
container_options, text=menu_list[0], variable=option_selected, value=0
)
option_volt.pack(side=LEFT, expand=True, fill=BOTH)
option_volt.select()
option_current = Radiobutton(
container_options, text=menu_list[1], variable=option_selected, value=1
)
option_current.pack(side=LEFT, expand=True, fill=BOTH)
option_resistance = Radiobutton(
container_options, text=menu_list[2], variable=option_selected, value=2
)
option_resistance.pack(side=LEFT, expand=True, fill=BOTH)
container_input_one = Frame(root)
container_input_one.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
label_one_line = Label(container_input_one, text=menu_list[0])
label_one_line.pack(side=LEFT, expand=True, fill=X)
input_one_line = Entry(container_input_one)
input_one_line.pack(side=LEFT, expand=True, fill=X)
unit_one_line = Label(container_input_one, text=unit_list[0])
unit_one_line.pack(side=LEFT, ipadx=4, ipady=4)
container_input_two = Frame(root)
container_input_two.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
label_two_line = Label(container_input_two, text=menu_list[2])
label_two_line.pack(side=LEFT, expand=True, fill=X)
input_two_line = Entry(container_input_two)
input_two_line.pack(side=LEFT, expand=True, fill=X)
unit_two_line = Label(container_input_two, text=unit_list[2])
unit_two_line.pack(side=LEFT, ipadx=4, ipady=4)
btn_calculate = Button(root, text="Calculate")
btn_calculate.pack(expand=True, fill=X, padx=4, pady=4, ipadx=2, ipady=2)
label_result = Label(root, text="-", font=("Hack", 20), background="#eee")
label_result.pack(expand=True, fill=BOTH, pady=8)
return root
def init_app():
build_gui().mainloop()
if __name__ == "__main__":
init_app()

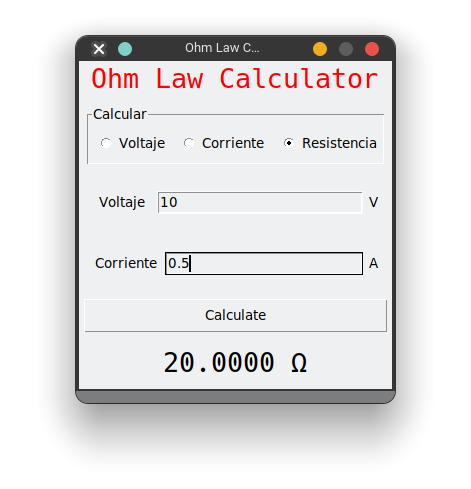

App Final
Ahora vamos a hacer las modificaciones pertinentes para que la aplicación realice sus funciones
from tkinter import *
from tkinter import messagebox
import ohms_law
VOLT_OPTION = 0
CURRENT_OPTION = 1
RESISTANCE_OPTION = 2
menu_list = ["Voltage", "Current", "Resistance"]
unit_list = ["V", "A", "Ω"]
def change_ui():
option = option_selected.get()
if option == VOLT_OPTION:
label_str_one.set(menu_list[CURRENT_OPTION])
label_unit_one.set(unit_list[CURRENT_OPTION])
label_str_two.set(menu_list[RESISTANCE_OPTION])
label_unit_two.set(unit_list[RESISTANCE_OPTION])
elif option == CURRENT_OPTION:
label_str_one.set(menu_list[VOLT_OPTION])
label_unit_one.set(unit_list[VOLT_OPTION])
label_str_two.set(menu_list[RESISTANCE_OPTION])
label_unit_two.set(unit_list[RESISTANCE_OPTION])
elif option == RESISTANCE_OPTION:
label_str_one.set(menu_list[VOLT_OPTION])
label_unit_one.set(unit_list[VOLT_OPTION])
label_str_two.set(menu_list[CURRENT_OPTION])
label_unit_two.set(unit_list[CURRENT_OPTION])
def calculate():
option = option_selected.get()
value = 0.0
value_one = value_entry_one.get()
value_two = value_entry_two.get()
if not len(value_one) or not len(value_two):

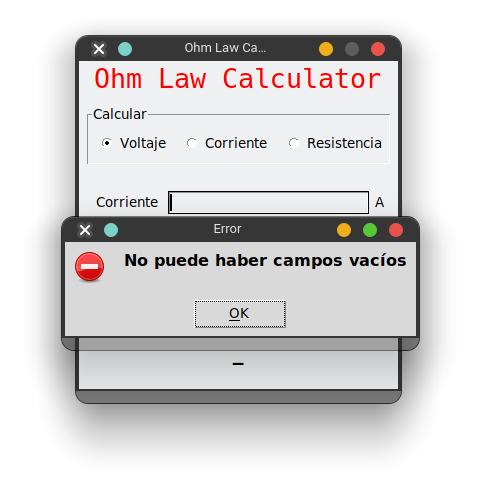

messagebox.showerror("Error", "No puede haber campos vacíos")
return
value_one = float(value_one)
value_two = float(value_two)
if value_two == 0 and (option == CURRENT_OPTION or option == RESISTANCE_OPTION):
messagebox.showerror("Error", "No puede ser cero el segundo valor, porque es infinito")
value_label_result.set("-")
return
if option == VOLT_OPTION:
value = ohms_law.voltage(value_one,value_two)
elif option == CURRENT_OPTION:
value = ohms_law.current(value_one,value_two)
elif option == RESISTANCE_OPTION:
value = ohms_law.resistance(value_one,value_two)
value = "{0:1.4f} {1}".format(value, unit_list[option])
value_label_result.set(value)
def build_gui():
"""Function to build de the gui of app
Returns:
Tk: Main windows from app
"""
root = Tk()
root.title("Ohm Law Calculator")
root.resizable(0, 0)
Label(root, text="Ohm Law Calculator", font=("Hack", 20), fg="red").pack(
expand=True, fill=BOTH
)
container_options = LabelFrame(root, text="Calculate", bd=1, relief=SUNKEN)
container_options.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
global option_selected
option_selected = IntVar()
option_selected.set(VOLT_OPTION)
option_volt = Radiobutton(
container_options, text=menu_list[VOLT_OPTION], variable=option_selected, value=VOLT_OPTION, command=change_ui
)
option_volt.pack(side=LEFT, expand=True, fill=BOTH)
option_volt.select()
option_current = Radiobutton(
container_options, text=menu_list[CURRENT_OPTION], variable=option_selected, value=CURRENT_OPTION, command=change_ui
)
option_current.pack(side=LEFT, expand=True, fill=BOTH)
option_resistance = Radiobutton(
container_options, text=menu_list[RESISTANCE_OPTION], variable=option_selected, value=RESISTANCE_OPTION, command=change_ui
)
option_resistance.pack(side=LEFT, expand=True, fill=BOTH)
global label_str_one
label_str_one= StringVar()
label_str_one.set(menu_list[CURRENT_OPTION])
global label_unit_one
label_unit_one= StringVar()
label_unit_one.set(unit_list[CURRENT_OPTION])
global value_entry_one
value_entry_one = StringVar()
value_entry_one.set("0.0")
container_input_one = Frame(root)
container_input_one.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
label_one_line = Label(container_input_one, textvariable=label_str_one)
label_one_line.pack(side=LEFT, expand=True, fill=X)
input_one_line = Entry(container_input_one, textvariable=value_entry_one)
input_one_line.pack(side=LEFT, expand=True, fill=X)
unit_one_line = Label(container_input_one, textvariable=label_unit_one)
unit_one_line.pack(side=LEFT, ipadx=4, ipady=4)
global label_str_two
label_str_two= StringVar()
label_str_two.set(menu_list[RESISTANCE_OPTION])
global label_unit_two
label_unit_two= StringVar()
label_unit_two.set(unit_list[RESISTANCE_OPTION])
global value_entry_two
value_entry_two = StringVar()
value_entry_two.set("0.0")
container_input_two = Frame(root)
container_input_two.pack(expand=True, fill=BOTH, padx=8, pady=8, ipadx=8, ipady=8)
label_two_line = Label(container_input_two, textvariable=label_str_two)
label_two_line.pack(side=LEFT, expand=True, fill=X)
input_two_line = Entry(container_input_two,textvariable=value_entry_two)
input_two_line.pack(side=LEFT, expand=True, fill=X)
unit_two_line = Label(container_input_two, textvariable=label_unit_two)
unit_two_line.pack(side=LEFT, ipadx=4, ipady=4)
btn_calculate = Button(root, text="Calculate", command=calculate)
btn_calculate.pack(expand=True, fill=X, padx=4, pady=4, ipadx=2, ipady=2)
global value_label_result
value_label_result=StringVar()
value_label_result.set("-")
label_result = Label(root, font=("Hack", 20), textvariable=value_label_result)
label_result.pack(expand=True, fill=BOTH, pady=8)
return root
def init_app():
"""Function to exec the app
"""
build_gui().mainloop()
if __name__ == "__main__":
"""function main to exec the app in test
"""
init_app()
Descargar archivos:
