Aplicación de código de colores
Vamos a realizar, solo con las funcionalidades básicas que se marcan:
Características:
- Calculo para resistencias de 4 bandas
- Debe indicar el valor resistivo correspondiente
- Indicar el valor de la tolerancia
- Debe indicar el valor que seria con su maxima y minima tolerancia

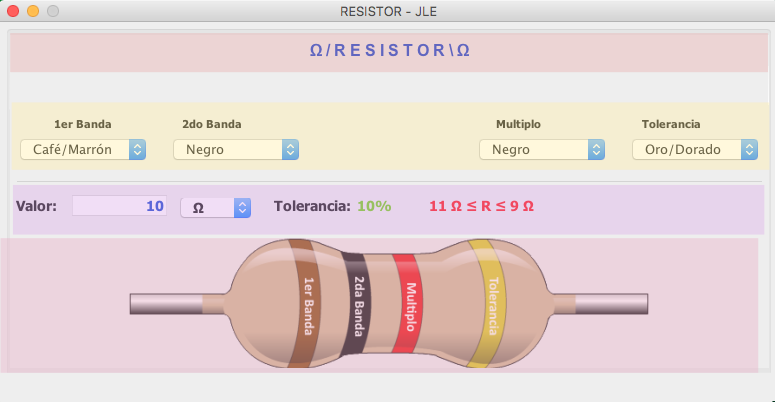

Analizando la interfaz
Vamos a marcar las secciones que tenemos en nuestra propuesta de aplicación, podemos notar las secciones con las que esta construida la aplicación, recordemos que esta imagen es solo una guía para construir de nuevo la ui.
En esta ocasión vamos a aplicar diferente geometry managers para construir nuestra app.
Estructura del proyecto
├── assets
│ └── resistencia.png
├── gui.py
├── __init__.py
├── main.py
└── ohm_color.py
Desarrollo
Librería o Módulo
El siguiente código realiza el calculo del valor de resistencia basándose en las bandas ya sea por el color o el numero.
Referencia del código de colores
"""Module for calculate the value of resistance taking the number of band
Example:
valor = get_value(band_1_num=2, band_2_num=2, multiplier_num=6)
print(valor)
print(get_range_tolerance(valor, "gold"))
print("======================")
valor = get_value(band_1_name="red", band_2_name="red", multiplier_name="silver")
print(valor)
"""
def get_tolerance(**value: str) -> dict:
"""Return a dict with the information about tolerance from resistace
Returns:
dict: all information about the tolerance: color, percentage and number
"""
tolerances = [
{"color": "brown", "percentage": 1, "number": 1},
{"color": "red", "percentage": 2, "number": 2},
{"color": "green", "percentage": 0.5, "number": 5},
{"color": "blue", "percentage": 0.25, "number": 6},
{"color": "violet", "percentage": 0.1, "number": 7},
{"color": "gray", "percentage": 0.05, "number": 8},
{"color": "gold", "percentage": 5, "number": 10},
{"color": "silver", "percentage": 10, "number": 11},
]
if value.get("color"):
for tolerance in tolerances:
if tolerance.get("color") == value.get("color"):
return tolerance
if value.get("number"):
for tolerance in tolerances:
if tolerance.get("number") == value.get("number"):
return tolerance
return None
def get_band(**value) -> dict:
"""Generate a dict with all information of color band
Returns:
dict: Return a dict with color, number and multiplier of color
"""
bands = [
{"color": "black", "number": 0, "multiplier": 1},
{"color": "brown", "number": 1, "multiplier": 10},
{"color": "red", "number": 2, "multiplier": 100},
{"color": "orange", "number": 3, "multiplier": 1000},
{"color": "yellow", "number": 4, "multiplier": 10000},
{"color": "green", "number": 5, "multiplier": 100000},
{"color": "blue", "number": 6, "multiplier": 1000000},
{"color": "violet", "number": 7, "multiplier": 10000000},
{"color": "gray", "number": 8, "multiplier": 0},
{"color": "white", "number": 9, "multiplier": 0},
{"color": "gold", "number": 10, "multiplier": 0.1},
{"color": "silver", "number": 11, "multiplier": 0.01},
]
if value.get("color"):
for band in bands:
if band.get("color") == value.get("color"):
return band
if value.get("number") >= 0 and value.get("number") <= 11:
for band in bands:
if band.get("number") == value.get("number"):
return band
return None
def get_value(
band_1_num=-1,
band_2_num=-1,
multiplier_num=-1,
band_1_name="",
band_2_name="",
multiplier_name="",
) -> float:
"""Get the value of the resistance, taking the value of each band and multiplier
Args:
band_1_num (int, optional): Band one with number. Defaults to -1.
band_2_num (int, optional): Band two with number. Defaults to -1.
multiplier_num (int, optional): Band tree or multiplier with number. Defaults to -1.
band_1_name (str, optional): Band one with name. Defaults to "".
band_2_name (str, optional): Band two with name. Defaults to "".
multiplier_name (str, optional): Band tree or multiplier with name. Defaults to "".
Returns:
float: Value of resistance
"""
if band_1_num > -1 and band_2_num > -1 and multiplier_num > -1:
value_1 = get_band(number=band_1_num)["number"]
value_2 = get_band(number=band_2_num)["number"]
multiplier = get_band(number=multiplier_num)["multiplier"]
value_base = int(f"{value_1}{value_2}")
return value_base * multiplier
elif band_1_name and band_2_name and multiplier_name:
value_1 = get_band(color=band_1_name)["number"]
value_2 = get_band(color=band_2_name)["number"]
multiplier = get_band(color=multiplier_name)["multiplier"]
value_base = int(f"{value_1}{value_2}")
return value_base * multiplier
return None
def get_range_tolerance(value: float, tolerance: str):
"""Get two values of tolerance, value down and up
Args:
value (float): Value of resistance
tolerance (str): name of color from tolerance
Returns:
tuple: first value from down, second value from up of range
"""
value_tolerance = get_tolerance(color=tolerance)["percentage"]
value_down = value - ((value * value_tolerance) / 100)
value_up = value + ((value * value_tolerance) / 100)
return (value_down, value_up)

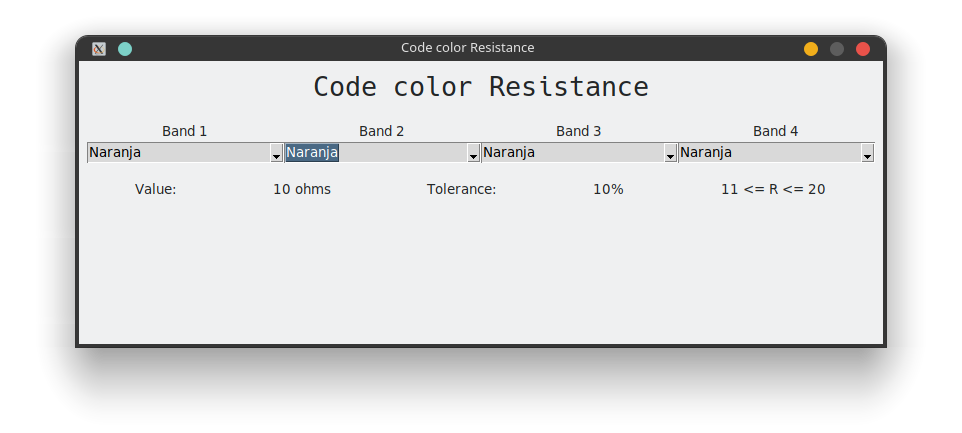

GUI
El siguiente código corresponde exclusivamente a la interfaz, sin interacción. Hay algunos valores que irán cambiando, solo se colocaron para referencia.
from tkinter import *
from tkinter.ttk import Combobox
from tkinter import messagebox # import all widgets from module tkinter
def build_gui():
"""Function to build all widgets and position
Returns:
Tk: Return the main window
"""
root = Tk()
root.title("Code color Resistance")
root.resizable(0,0)
Label(root, text="Code color Resistance", font=("Hack", 20)).pack(expand=True, fill=BOTH, padx=8, pady=8)
container_bands = Frame(root)
Label(container_bands, text="Band 1").grid(row=0, column=0)
band_1 = Combobox(container_bands, values=("Cafe","Rojo"), state="readonly").grid(row=1, column=0)
Label(container_bands, text="Band 2").grid(row=0, column=1)
band_2 = Combobox(container_bands, values=("Naranja","Morado"), state="readonly").grid(row=1, column=1)
Label(container_bands, text="Band 3").grid(row=0, column=2)
band_3 = Combobox(container_bands, values=("Azul","Amarillo"), state="readonly").grid(row=1, column=2)
Label(container_bands, text="Band 4").grid(row=0, column=3)
band_4 = Combobox(container_bands, values=("Blanco","Gris"), state="readonly").grid(row=1, column=3)
container_bands.pack(expand=True, fill=BOTH,padx=8, pady=8)
container_result = Frame(root)
Label(container_result, text="Value:").pack(expand=True, side=LEFT)
label_result = Label(container_result, text="10 ohms")
label_result.pack(side=LEFT, expand=True)
Label(container_result, text="Tolerance:").pack(side=LEFT, expand=True)
label_tolerance = Label(container_result, text="10%")
label_tolerance.pack(expand=True, side=LEFT)
label_range = Label(container_result, text="11 <= R <= 20")
label_range.pack(expand=True, side=LEFT)
container_result.pack(expand=True, fill=BOTH, padx=8, pady=8)
img = PhotoImage(file="assets/resistencia.png")
Label(root, image=img).pack()
return root
def init_app():
"""Function main to invoke the build guid
"""
build_gui().mainloop()

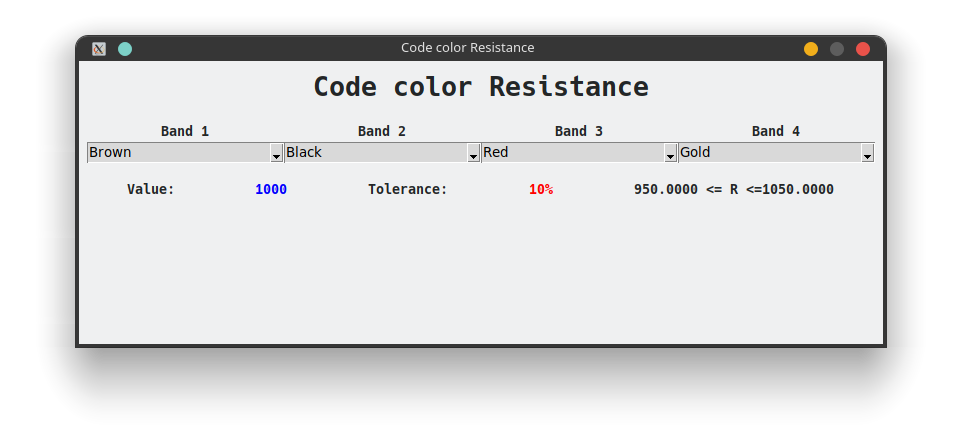

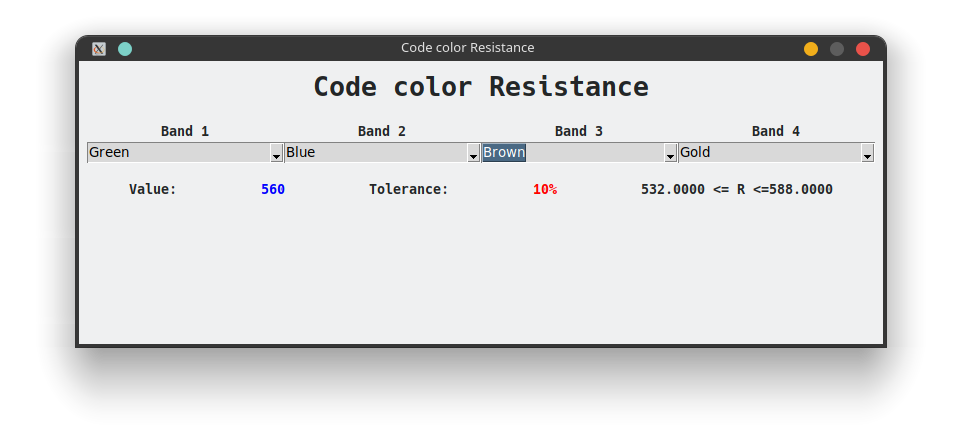

App Final
Ahora vamos a hacer las modificaciones pertinentes para que la aplicación realice sus funciones
# import all widgets from module tkinter
from tkinter import *
from tkinter.ttk import Combobox
from tkinter import messagebox
# All importation from the module to calculate the value of resistance
from ohm_color import (
get_value as get_value_resistance,
get_range_tolerance,
get_tolerance,
)
"""Data for the first combo box, band one
"""
colors_band1 = (
"Black",
"Brown",
"Red",
"Orange",
"Yellow",
"Green",
"Blue",
"Violet",
"Gray",
"White",
)
"""Data for the second combo box, band two
"""
colors_band2 = (
"Black",
"Brown",
"Red",
"Orange",
"Yellow",
"Green",
"Blue",
"Violet",
"Gray",
"White",
)
"""Data for the third combo box, band three
"""
multiplier_band = (
"Black",
"Brown",
"Red",
"Orange",
"Yellow",
"Green",
"Blue",
"Violet",
"Gray",
"White",
"Gold",
"Silver",
)
"""Data for the fourth combo box, band four
"""
tolerances = ("Brown", "Red", "Green", "Blue", "Violet", "Gray", "Gold", "Silver")
def create_range_str(down=0.0, up=0.0):
"""Generate the str with format for the range of error from resistance
Args:
down (float, optional): Value down for range. Defaults to 0.0.
up (float, optional): Value raise for range. Defaults to 0.0.
Returns:
str: String for label range
"""
return "{0:1.4f}Ω <= R <={1:1.4f}Ω".format(down, up)
def calculate_to_ui():
"""Update all widgets in the UI"""
print(band_1_str.get().lower())
print(band_2_str.get().lower())
print(band_multiplier_str.get().lower())
print(band_tolerance_str.get().lower())
value_ohm = get_value_resistance(
band_1_name=band_1_str.get().lower(),
band_2_name=band_2_str.get().lower(),
multiplier_name=band_multiplier_str.get().lower(),
)
result_str.set(f"{value_ohm}Ω")
color_tolerance = band_tolerance_str.get().lower()
range_down, range_up = get_range_tolerance(value_ohm, color_tolerance)
range_str.set(create_range_str(range_down, range_up))
percentage = get_tolerance(color=color_tolerance)["percentage"]
tolerance_str.set(f"{percentage}%")
def event_change_band(ev):
"""Function to trigger when some combo box change the value
Args:
ev (event): Nothing
"""
calculate_to_ui()
def build_gui():
"""Function to build all widgets and position
Returns:
Tk: Return the main window
"""
root = Tk()
root.title("Code color Resistance")
root.resizable(0, 0)
Label(root, text="Code color Resistance", font=("Hack", 20, "bold")).pack(
expand=True, fill=BOTH, padx=8, pady=8
)
container_bands = Frame(root)
Label(container_bands, text="Band 1", font=("Hack", 10, "bold")).grid(
row=0, column=0
)
global band_1_str
band_1_str = StringVar()
band_1 = Combobox(
container_bands, values=colors_band1, state="readonly", textvariable=band_1_str
)
band_1.grid(row=1, column=0)
band_1.current(1)
band_1.bind("<<ComboboxSelected>>", event_change_band)
Label(container_bands, text="Band 2", font=("Hack", 10, "bold")).grid(
row=0, column=1
)
global band_2_str
band_2_str = StringVar()
band_2 = Combobox(
container_bands, values=colors_band2, state="readonly", textvariable=band_2_str
)
band_2.grid(row=1, column=1)
band_2.current(0)
band_2.bind("<<ComboboxSelected>>", event_change_band)
Label(container_bands, text="Band 3", font=("Hack", 10, "bold")).grid(
row=0, column=2
)
global band_multiplier_str
band_multiplier_str = StringVar()
band_3 = Combobox(
container_bands,
values=multiplier_band,
state="readonly",
textvariable=band_multiplier_str,
)
band_3.grid(row=1, column=2)
band_3.current(2)
band_3.bind("<<ComboboxSelected>>", event_change_band)
Label(container_bands, text="Band 4", font=("Hack", 10, "bold")).grid(
row=0, column=3
)
global band_tolerance_str
band_tolerance_str = StringVar()
band_4 = Combobox(
container_bands,
values=tolerances,
state="readonly",
textvariable=band_tolerance_str,
)
band_4.grid(row=1, column=3)
band_4.current(6)
band_4.bind("<<ComboboxSelected>>", event_change_band)
container_bands.pack(expand=True, fill=BOTH, padx=8, pady=8)
container_result = Frame(root)
Label(container_result, text="Value:", font=("Hack", 10, "bold")).pack(
expand=True, side=LEFT
)
global result_str
result_str = StringVar()
label_result = Label(
container_result, font=("Hack", 10, "bold"), fg="blue", textvariable=result_str
)
label_result.pack(side=LEFT, expand=True)
Label(container_result, text="Tolerance:", font=("Hack", 10, "bold")).pack(
side=LEFT, expand=True
)
global tolerance_str
tolerance_str = StringVar()
Label(
container_result,
textvariable=tolerance_str,
font=("Hack", 10, "bold"),
fg="red",
).pack(expand=True, side=LEFT)
global range_str
range_str = StringVar()
label_range = Label(
container_result, textvariable=range_str, font=("Hack", 10, "bold")
)
label_range.pack(expand=True, side=LEFT)
container_result.pack(expand=True, fill=BOTH, padx=8, pady=8)
img = PhotoImage(
file="assets/resistencia.png"
)
Label(root, image=img).pack()
calculate_to_ui()
return root
def init_app():
"""Function main to invoke the build gui"""
build_gui().mainloop()
if __name__ == "__main__":
"""Function to the the app"""
init_app()
Nota: En teoría carga la imagen de la resistencia, puede ser un bug de tkinter
Descargar archivos:
