Proyecto final - Gestor de componentes electrónicos
Vamos a realizar una aplicación visual en la cual se podrán agregar, editar, eliminar y buscar componentes electrónicos, todo esta información estará almacenada en una base de datos local (Sqlite), para poder llevar la aplicación a cualquier lado. Terminando con una aplicación de Desktop empaquetada.
La parte visual se realizara con la herramienta QT Designer, y toda la lógica se realizara con python, utilizando una arquitectura MVC.
Vistas de la aplicación

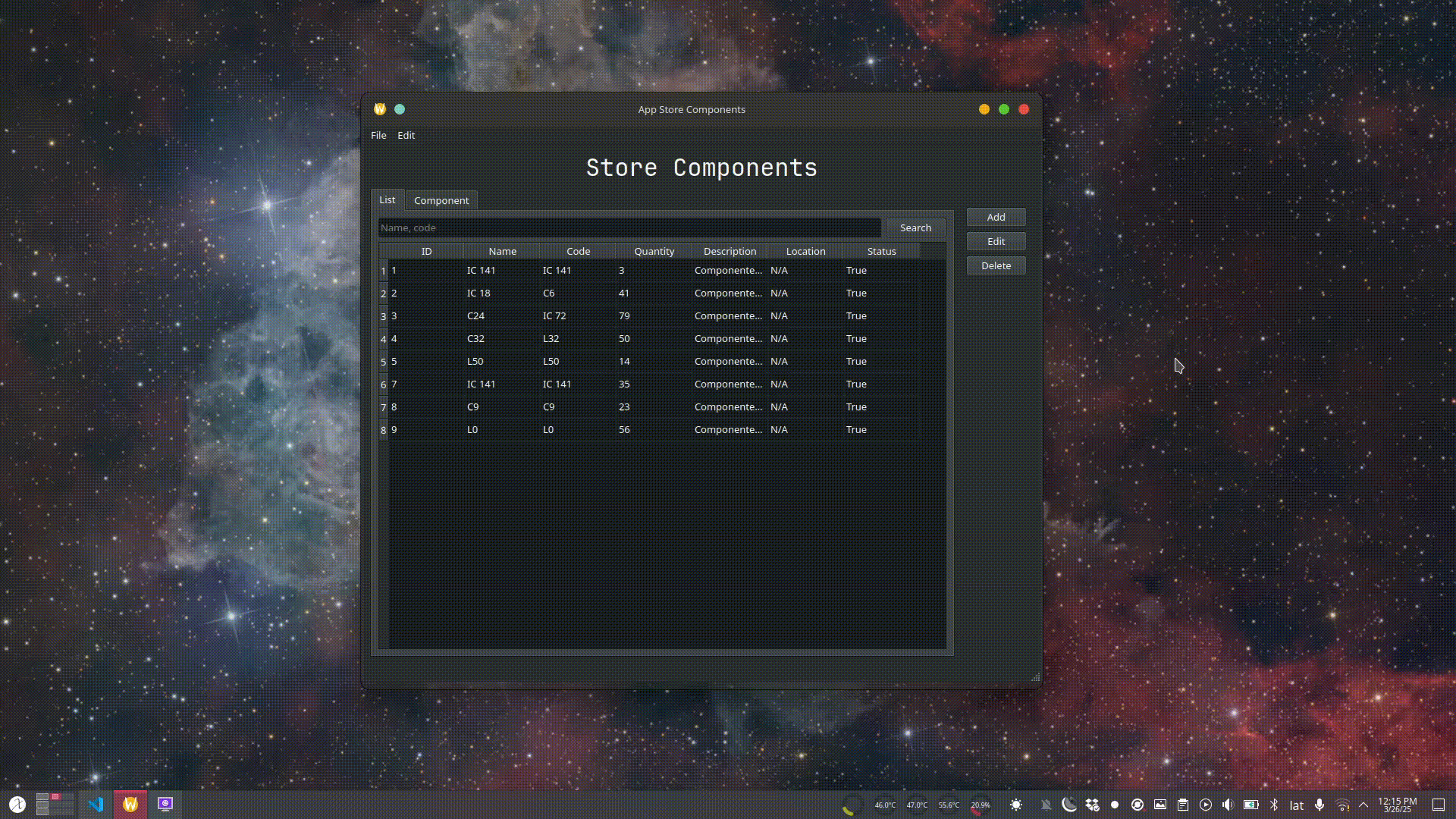

Ventana principal
Ventana para agregar y editar componentes
Características
- Persistencia de datos con SQLite (Peewee ORM)
- Multiplataforma
Estructura del proyecto
├── assets
│ └── logo.ico
├── componente_controller.py
├── component.py
├── form_add_edit_controller.py
├── form_add_edit.ui
├── __init__.py
├── main.py
├── main_window_controller.py
├── main_window.ui
├── ui_form_add_edit.py
└── ui_main_window.py
Desarrollando
Punto de entrada de la aplicación
main.py
from PySide6.QtWidgets import QApplication
from main_window_controller import MainWindow
import sys
if __name__ == "__main__":
app = QApplication(sys.argv)
window = MainWindow()
window.show()
app.exec()
component.py
from peewee import *
db = SqliteDatabase("components.db")
class ModelComponent(Model):
id = AutoField()
name = CharField(max_length=20)
code = CharField(max_length=10)
description = TextField(null=True)
count = IntegerField(default=0)
location = CharField(default="NA")
status = BooleanField(default=False)
def __str__(self):
return f"[id]: {self.id} - [name] {self.name} - [code]:{self.code} - [count]: {self.count} - [location]: {self.location}"
class Meta:
database = db
class Component:
def __init__(
self,
name,
code,
status=False,
description=None,
id=None,
location="N/A",
count=0,
):
self.id = id
self.name = name
self.description = description
self.code = code
self.count = count
self.location = location
self.status = status or bool(count)
def __str__(self):
return f"[id]: {self.id} - [name] {self.name} - [code]:{self.code} - [count]: {self.count} - [location]: {self.location}"
@staticmethod
def get_columns():
return ["id", "Name", "Code", "Count", "Description", "Location", "Status"]
def get_model(self):
model = {
"name": self.name,
"code": self.code,
"count": self.count,
"description": self.description,
"location": self.location,
"status": bool(self.count),
}
if id:
model["id"] = self.id
return ModelComponent(**model)
@staticmethod
def get_component(component: ModelComponent):
return Component(
id=component.id,
name=component.name,
code=component.code,
description=component.description if component.description else "",
location=component.location if component.location else "",
count=component.count,
status=component.status,
)
componente_controller.py
from component import *
class ComponentController:
def __init__(self):
if not ModelComponent.table_exists():
ModelComponent.create_table()
def insert(self, component: Component):
component.get_model().save()
def get(self, id):
return ModelComponent.get_by_id(id)
def get_all(self):
return [ Component.get_component(c) for c in ModelComponent.select() ]
def delete(self, id: int):
ModelComponent.get_by_id(id).delete_instance()
def update(self, component: Component):
component.get_model().save()
def search_by_code(self, code: str):
id = int(code) if code.isdigit() else 0
components_model = ModelComponent.select().where(
(ModelComponent.id == id) | (ModelComponent.code.contains(code))
)
return {
"components": [Component.get_component(c) for c in components_model],
"size": components_model.count(),
}
def get_size(self):
return ModelComponent.select().count()
def search(self, text: str):
components_model = ModelComponent.select().where(
(ModelComponent.name.contains(text))
| (ModelComponent.code.contains(text))
| (ModelComponent.description.contains(text))
)
return {
"components": [Component.get_component(c) for c in components_model],
"size": components_model.count(),
}
form_add_edit_controller.py
from PySide6.QtWidgets import QWidget
from ui_form_add_edit import Ui_Form
from component import Component
class Form(QWidget, Ui_Form):
def __init__(self, title: str, component: Component = None, callback=None):
super().__init__()
self.setupUi(self)
self.setWindowTitle(title)
self.callback = callback # callback to exec to close
self.component = component # el componente a editar
self.label.setText(title)
self.init()
self.component = component
self.load_data_ui()
def init(self):
self.btn_cancel.clicked.connect(self.close_dialog)
self.btn_save.clicked.connect(self.save)
def load_data_ui(self):
if self.component and self.callback:
self.__load_component_to_ui(component=self.component)
def __load_component_to_ui(self, component: Component):
self.input_code.setText(component.code)
self.input_name.setText(component.name)
self.input_count.setValue(component.count)
self.input_description.setPlainText(component.description)
def get_component_from_ui(self):
name = self.input_name.text()
count = int(self.input_count.text())
description = self.input_description.toPlainText()
code = self.input_code.text()
return Component(name=name, count=count, description=description, code=code)
def save(self):
if self.component and self.callback:
component_updated = self.get_component_from_ui()
component_updated.id = self.component.id
self.callback(component_updated)
self.close_dialog()
elif self.callback:
self.callback(self.get_component_from_ui())
self.close_dialog()
def close_dialog(self):
self.close()
main_window_controller.py
from PySide6.QtWidgets import QMainWindow, QTableWidgetItem, QMessageBox
from ui_main_window import Ui_MainWindow
from form_add_edit_controller import Form
from componente_controller import ComponentController
from component import Component
class MainWindow(QMainWindow, Ui_MainWindow):
dialog = None
components = None
TAB_TABLE = 0
TAB_ONE = 1
component = None
def __init__(self):
super().__init__()
self.setupUi(self)
self.init_events()
self.db = ComponentController()
self.build_data_table()
def init_events(self):
self.btn_add.clicked.connect(self.add_componente)
self.btn_edit.clicked.connect(self.edit_component)
self.btn_delete.clicked.connect(self.delete_element)
self.btn_search_table.clicked.connect(self.search_table)
self.input_search_table.returnPressed.connect(self.search_table)
self.btn_search_id.clicked.connect(self.search_one)
self.input_search_id.returnPressed.connect(self.search_one)
def build_data_table(self):
if self.db:
components = self.db.get_all()
self.components = components
size = self.db.get_size()
self.__load_data_table(components=components, size=size)
def __load_data_table(self, components: list[Component], size: int):
self.table_components.setRowCount(size)
for i, component in enumerate(components):
self.table_components.setItem(i, 0, QTableWidgetItem(str(component.id)))
self.table_components.setItem(i, 1, QTableWidgetItem(component.name))
self.table_components.setItem(i, 2, QTableWidgetItem(component.code))
self.table_components.setItem(i, 3, QTableWidgetItem(str(component.count)))
self.table_components.setItem(i, 4, QTableWidgetItem(component.description))
self.table_components.setItem(i, 5, QTableWidgetItem(component.location))
self.table_components.setItem(i, 6, QTableWidgetItem(str(component.status)))
def __build_message(self, component: Component):
message = QMessageBox(self)
message.setWindowTitle("Delete Component")
message.setText(
f"You're going to delete:<br><strong>[Component: {component.name} with Code: {component.code}]</strong>"
)
message.setIcon(QMessageBox.Icon.Warning)
message.setStandardButtons(
QMessageBox.StandardButton.Ok | QMessageBox.StandardButton.Cancel
)
return message.exec()
def message_error(self):
QMessageBox.information(self, "Error", "No component selected")
def delete_element(self):
component_to_delete = None
if self.__get_current_tab() == self.TAB_TABLE:
component = self.__get_component()
if component:
component_to_delete = component
elif self.__get_current_tab() == self.TAB_ONE:
if self.component:
component_to_delete = self.component
if not component_to_delete:
self.message_error()
if component_to_delete:
answer = self.__build_message(component=component_to_delete)
if answer == QMessageBox.StandardButton.Ok:
self.db.delete(component_to_delete.id)
QMessageBox.information(
self, "Deleted", "Componente Deleted Successfully"
)
else:
self.message_error()
self.build_data_table()
self.component = None
self.clear_one()
def search_table(self):
word = self.input_search_table.text()
components_dict = self.db.search(word)
self.__load_data_table(
components=components_dict["components"], size=components_dict["size"]
)
def search_one(self):
word = self.input_search_id.text()
components = self.db.search_by_code(word)
if components["size"] and word:
self.component = components["components"][0]
self.__load_one(self.component)
else:
self.clear_one()
def clear_one(self):
edits = [
self.edit_code,
self.edit_count,
self.edit_name,
self.edit_description,
self.lbl_info,
]
for e in edits:
e.clear()
self.component = None
def __load_one(self, component: Component):
def text():
return f"ID: {component.id}\nLocation: {component.location}\nStatus: {component.status}"
if component:
self.edit_code.setText(component.code)
self.edit_count.setText(str(component.count))
self.edit_name.setText(component.name)
self.edit_description.setPlainText(component.description)
self.lbl_info.setText(text())
def __get_current_tab(self):
return self.tabWidget.currentIndex()
def add_componente(self):
self.dialog = Form("Add component", callback=self.__save_data)
self.dialog.show()
def __save_data(self, component: Component):
self.db.insert(component=component)
self.build_data_table()
def edit_component(self):
title_window = "Edit component"
if self.__get_current_tab() == self.TAB_TABLE and self.__get_component():
component = self.__get_component()
self.dialog = Form(
title_window,
callback=self.__update_component,
component=component,
)
self.dialog.show()
elif self.__get_current_tab() == self.TAB_ONE and self.component:
self.dialog = Form(
title_window,
callback=self.__update_component,
component=self.component,
)
self.dialog.show()
return
else:
self.message_error()
def __get_component(self):
i = self.table_components.currentRow()
if i != -1:
return self.components[i]
return None
def __update_component(self, component):
self.db.update(component=component)
self.build_data_table()
form_add_edit.ui
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>Form</class>
<widget class="QWidget" name="Form">
<property name="windowModality">
<enum>Qt::WindowModality::ApplicationModal</enum>
</property>
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>507</width>
<height>687</height>
</rect>
</property>
<property name="windowTitle">
<string>Form</string>
</property>
<layout class="QVBoxLayout" name="verticalLayout_3">
<item>
<widget class="QLabel" name="label">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>18</pointsize>
</font>
</property>
<property name="text">
<string>Add/Edit</string>
</property>
<property name="alignment">
<set>Qt::AlignmentFlag::AlignCenter</set>
</property>
</widget>
</item>
<item>
<widget class="QWidget" name="widget" native="true">
<layout class="QVBoxLayout" name="verticalLayout_2">
<item>
<layout class="QGridLayout" name="gridLayout">
<item row="0" column="0">
<widget class="QLabel" name="label_2">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>12</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Name:</string>
</property>
</widget>
</item>
<item row="0" column="1" rowspan="2">
<widget class="QLineEdit" name="input_name"/>
</item>
<item row="1" column="0" rowspan="2">
<widget class="QLabel" name="label_3">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>12</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Code:</string>
</property>
</widget>
</item>
<item row="2" column="1">
<widget class="QLineEdit" name="input_code"/>
</item>
<item row="3" column="0">
<widget class="QLabel" name="label_4">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>12</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Quantity: </string>
</property>
</widget>
</item>
<item row="3" column="1">
<widget class="QSpinBox" name="input_count"/>
</item>
</layout>
</item>
<item>
<layout class="QVBoxLayout" name="verticalLayout">
<item>
<widget class="QLabel" name="label_5">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>12</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Description</string>
</property>
</widget>
</item>
<item>
<widget class="QPlainTextEdit" name="input_description"/>
</item>
</layout>
</item>
</layout>
</widget>
</item>
<item>
<layout class="QHBoxLayout" name="horizontalLayout">
<item>
<widget class="QPushButton" name="btn_cancel">
<property name="text">
<string>Cancel</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_save">
<property name="text">
<string>Save</string>
</property>
</widget>
</item>
</layout>
</item>
</layout>
</widget>
<resources/>
<connections/>
</ui>
main_window.ui
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>MainWindow</class>
<widget class="QMainWindow" name="MainWindow">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>893</width>
<height>732</height>
</rect>
</property>
<property name="windowTitle">
<string>App Store Components</string>
</property>
<widget class="QWidget" name="centralwidget">
<layout class="QVBoxLayout" name="verticalLayout_2">
<item>
<widget class="QLabel" name="label">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>24</pointsize>
</font>
</property>
<property name="text">
<string>Store Components</string>
</property>
<property name="alignment">
<set>Qt::AlignmentFlag::AlignCenter</set>
</property>
</widget>
</item>
<item>
<layout class="QGridLayout" name="gridLayout">
<item row="0" column="1">
<widget class="QWidget" name="widget" native="true">
<layout class="QVBoxLayout" name="verticalLayout">
<item>
<spacer name="verticalSpacer_2">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Preferred</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>20</width>
<height>16</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="QPushButton" name="btn_add">
<property name="text">
<string>Add</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_edit">
<property name="text">
<string>Edit</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_delete">
<property name="text">
<string>Delete</string>
</property>
</widget>
</item>
<item>
<spacer name="verticalSpacer">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>20</width>
<height>40</height>
</size>
</property>
</spacer>
</item>
</layout>
</widget>
</item>
<item row="0" column="0">
<widget class="QTabWidget" name="tabWidget">
<property name="currentIndex">
<number>0</number>
</property>
<widget class="QWidget" name="tab">
<attribute name="title">
<string>List</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_3">
<item>
<layout class="QHBoxLayout" name="horizontalLayout">
<item>
<widget class="QLineEdit" name="input_search_table">
<property name="placeholderText">
<string>Name, code</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_search_table">
<property name="text">
<string>Search</string>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QTableWidget" name="table_components">
<property name="editTriggers">
<set>QAbstractItemView::EditTrigger::NoEditTriggers</set>
</property>
<property name="rowCount">
<number>0</number>
</property>
<property name="columnCount">
<number>7</number>
</property>
<column>
<property name="text">
<string>ID</string>
</property>
</column>
<column>
<property name="text">
<string>Name</string>
</property>
</column>
<column>
<property name="text">
<string>Code</string>
</property>
</column>
<column>
<property name="text">
<string>Quantity</string>
</property>
</column>
<column>
<property name="text">
<string>Description</string>
</property>
</column>
<column>
<property name="text">
<string>Location</string>
</property>
</column>
<column>
<property name="text">
<string>Status</string>
</property>
</column>
</widget>
</item>
</layout>
</widget>
<widget class="QWidget" name="tab_2">
<attribute name="title">
<string>Component</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_4">
<item>
<layout class="QHBoxLayout" name="horizontalLayout_2">
<item>
<widget class="QLineEdit" name="input_search_id">
<property name="placeholderText">
<string>Id / Code</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_search_id">
<property name="text">
<string>Search</string>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QFrame" name="frame">
<property name="sizePolicy">
<sizepolicy hsizetype="Expanding" vsizetype="Expanding">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="frameShape">
<enum>QFrame::Shape::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Shadow::Raised</enum>
</property>
<layout class="QVBoxLayout" name="verticalLayout_6">
<item>
<layout class="QGridLayout" name="gridLayout_2">
<item row="0" column="0">
<widget class="QLabel" name="label_2">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Name:</string>
</property>
</widget>
</item>
<item row="0" column="1">
<widget class="QLineEdit" name="edit_name">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
<item row="1" column="0">
<widget class="QLabel" name="label_3">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Code:</string>
</property>
</widget>
</item>
<item row="1" column="1">
<widget class="QLineEdit" name="edit_code">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
<item row="2" column="0">
<widget class="QLabel" name="label_4">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Quantity:</string>
</property>
</widget>
</item>
<item row="2" column="1">
<widget class="QLineEdit" name="edit_count">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
</layout>
</item>
<item>
<layout class="QVBoxLayout" name="verticalLayout_5">
<item>
<widget class="QLabel" name="label_5">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Description:</string>
</property>
</widget>
</item>
<item>
<widget class="QPlainTextEdit" name="edit_description">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
<property name="plainText">
<string/>
</property>
<property name="textInteractionFlags">
<set>Qt::TextInteractionFlag::TextSelectableByMouse</set>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QWidget" name="widget_2" native="true">
<layout class="QVBoxLayout" name="verticalLayout_7">
<item>
<widget class="QLabel" name="lbl_info">
<property name="sizePolicy">
<sizepolicy hsizetype="Expanding" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="text">
<string>Information:</string>
</property>
</widget>
</item>
</layout>
</widget>
</item>
</layout>
</widget>
</item>
</layout><?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>MainWindow</class>
<widget class="QMainWindow" name="MainWindow">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>893</width>
<height>732</height>
</rect>
</property>
<property name="windowTitle">
<string>App Store Components</string>
</property>
<widget class="QWidget" name="centralwidget">
<layout class="QVBoxLayout" name="verticalLayout_2">
<item>
<widget class="QLabel" name="label">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>24</pointsize>
</font>
</property>
<property name="text">
<string>Store Components</string>
</property>
<property name="alignment">
<set>Qt::AlignmentFlag::AlignCenter</set>
</property>
</widget>
</item>
<item>
<layout class="QGridLayout" name="gridLayout">
<item row="0" column="1">
<widget class="QWidget" name="widget" native="true">
<layout class="QVBoxLayout" name="verticalLayout">
<item>
<spacer name="verticalSpacer_2">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Preferred</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>20</width>
<height>16</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="QPushButton" name="btn_add">
<property name="text">
<string>Add</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_edit">
<property name="text">
<string>Edit</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_delete">
<property name="text">
<string>Delete</string>
</property>
</widget>
</item>
<item>
<spacer name="verticalSpacer">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>20</width>
<height>40</height>
</size>
</property>
</spacer>
</item>
</layout>
</widget>
</item>
<item row="0" column="0">
<widget class="QTabWidget" name="tabWidget">
<property name="currentIndex">
<number>0</number>
</property>
<widget class="QWidget" name="tab">
<attribute name="title">
<string>List</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_3">
<item>
<layout class="QHBoxLayout" name="horizontalLayout">
<item>
<widget class="QLineEdit" name="input_search_table">
<property name="placeholderText">
<string>Name, code</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_search_table">
<property name="text">
<string>Search</string>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QTableWidget" name="table_components">
<property name="editTriggers">
<set>QAbstractItemView::EditTrigger::NoEditTriggers</set>
</property>
<property name="rowCount">
<number>0</number>
</property>
<property name="columnCount">
<number>7</number>
</property>
<column>
<property name="text">
<string>ID</string>
</property>
</column>
<column>
<property name="text">
<string>Name</string>
</property>
</column>
<column>
<property name="text">
<string>Code</string>
</property>
</column>
<column>
<property name="text">
<string>Quantity</string>
</property>
</column>
<column>
<property name="text">
<string>Description</string>
</property>
</column>
<column>
<property name="text">
<string>Location</string>
</property>
</column>
<column>
<property name="text">
<string>Status</string>
</property>
</column>
</widget>
</item>
</layout>
</widget>
<widget class="QWidget" name="tab_2">
<attribute name="title">
<string>Component</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_4">
<item>
<layout class="QHBoxLayout" name="horizontalLayout_2">
<item>
<widget class="QLineEdit" name="input_search_id">
<property name="placeholderText">
<string>Id / Code</string>
</property>
</widget>
</item>
<item>
<widget class="QPushButton" name="btn_search_id">
<property name="text">
<string>Search</string>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QFrame" name="frame">
<property name="sizePolicy">
<sizepolicy hsizetype="Expanding" vsizetype="Expanding">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="frameShape">
<enum>QFrame::Shape::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Shadow::Raised</enum>
</property>
<layout class="QVBoxLayout" name="verticalLayout_6">
<item>
<layout class="QGridLayout" name="gridLayout_2">
<item row="0" column="0">
<widget class="QLabel" name="label_2">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Name:</string>
</property>
</widget>
</item>
<item row="0" column="1">
<widget class="QLineEdit" name="edit_name">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
<item row="1" column="0">
<widget class="QLabel" name="label_3">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Code:</string>
</property>
</widget>
</item>
<item row="1" column="1">
<widget class="QLineEdit" name="edit_code">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
<item row="2" column="0">
<widget class="QLabel" name="label_4">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Quantity:</string>
</property>
</widget>
</item>
<item row="2" column="1">
<widget class="QLineEdit" name="edit_count">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="text">
<string/>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
</widget>
</item>
</layout>
</item>
<item>
<layout class="QVBoxLayout" name="verticalLayout_5">
<item>
<widget class="QLabel" name="label_5">
<property name="font">
<font>
<family>JetBrains Mono</family>
<pointsize>11</pointsize>
<bold>true</bold>
</font>
</property>
<property name="text">
<string>Description:</string>
</property>
</widget>
</item>
<item>
<widget class="QPlainTextEdit" name="edit_description">
<property name="font">
<font>
<family>JetBrains Mono</family>
</font>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
<property name="plainText">
<string/>
</property>
<property name="textInteractionFlags">
<set>Qt::TextInteractionFlag::TextSelectableByMouse</set>
</property>
</widget>
</item>
</layout>
</item>
<item>
<widget class="QWidget" name="widget_2" native="true">
<layout class="QVBoxLayout" name="verticalLayout_7">
<item>
<widget class="QLabel" name="lbl_info">
<property name="sizePolicy">
<sizepolicy hsizetype="Expanding" vsizetype="Preferred">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="text">
<string>Information:</string>
</property>
</widget>
</item>
</layout>
</widget>
</item>
</layout>
</widget>
</item>
</layout>
</widget>
</widget>
</item>
</layout>
</item>
</layout>
</widget>
<widget class="QMenuBar" name="menubar">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>893</width>
<height>30</height>
</rect>
</property>
<widget class="QMenu" name="menuArchivo">
<property name="title">
<string>File</string>
</property>
<addaction name="actionAgregar_componente"/>
<addaction name="actionEditar_componente"/>
<addaction name="separator"/>
<addaction name="actionSalir"/>
</widget>
<widget class="QMenu" name="menuEdici_n">
<property name="title">
<string>Edit</string>
</property>
<addaction name="actionAdegar_componente"/>
<addaction name="actionEditar_componente_2"/>
<addaction name="actionEliminar_componente"/>
</widget>
<addaction name="menuArchivo"/>
<addaction name="menuEdici_n"/>
</widget>
<widget class="QStatusBar" name="statusbar"/>
<action name="actionAgregar_componente">
<property name="text">
<string>Export components</string>
</property>
</action>
<action name="actionEditar_componente">
<property name="text">
<string>Export all components</string>
</property>
</action>
<action name="actionAdegar_componente">
<property name="text">
<string>Add component</string>
</property>
</action>
<action name="actionEditar_componente_2">
<property name="text">
<string>Edit component</string>
</property>
</action>
<action name="actionEliminar_componente">
<property name="text">
<string>Delete component</string>
</property>
</action>
<action name="actionSalir">
<property name="text">
<string>Quit</string>
</property>
<property name="shortcut">
<string>Ctrl+Q</string>
</property>
</action>
<action name="actionotro">
<property name="text">
<string>otro</string>
</property>
</action>
</widget>
<tabstops>
<tabstop>input_search_table</tabstop>
<tabstop>btn_search_table</tabstop>
<tabstop>btn_add</tabstop>
<tabstop>btn_edit</tabstop>
<tabstop>btn_delete</tabstop>
<tabstop>tabWidget</tabstop>
<tabstop>input_search_id</tabstop>
<tabstop>btn_search_id</tabstop>
<tabstop>edit_code</tabstop>
<tabstop>edit_count</tabstop>
<tabstop>table_components</tabstop>
<tabstop>edit_name</tabstop>
<tabstop>edit_description</tabstop>
</tabstops>
<resources/>
<connections/>
</ui>
</widget>
</widget>
</item>
</layout>
</item>
</layout>
</widget>
<widget class="QMenuBar" name="menubar">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>893</width>
<height>30</height>
</rect>
</property>
<widget class="QMenu" name="menuArchivo">
<property name="title">
<string>File</string>
</property>
<addaction name="actionAgregar_componente"/>
<addaction name="actionEditar_componente"/>
<addaction name="separator"/>
<addaction name="actionSalir"/>
</widget>
<widget class="QMenu" name="menuEdici_n">
<property name="title">
<string>Edit</string>
</property>
<addaction name="actionAdegar_componente"/>
<addaction name="actionEditar_componente_2"/>
<addaction name="actionEliminar_componente"/>
</widget>
<addaction name="menuArchivo"/>
<addaction name="menuEdici_n"/>
</widget>
<widget class="QStatusBar" name="statusbar"/>
<action name="actionAgregar_componente">
<property name="text">
<string>Export components</string>
</property>
</action>
<action name="actionEditar_componente">
<property name="text">
<string>Export all components</string>
</property>
</action>
<action name="actionAdegar_componente">
<property name="text">
<string>Add component</string>
</property>
</action>
<action name="actionEditar_componente_2">
<property name="text">
<string>Edit component</string>
</property>
</action>
<action name="actionEliminar_componente">
<property name="text">
<string>Delete component</string>
</property>
</action>
<action name="actionSalir">
<property name="text">
<string>Quit</string>
</property>
<property name="shortcut">
<string>Ctrl+Q</string>
</property>
</action>
<action name="actionotro">
<property name="text">
<string>otro</string>
</property>
</action>
</widget>
<tabstops>
<tabstop>input_search_table</tabstop>
<tabstop>btn_search_table</tabstop>
<tabstop>btn_add</tabstop>
<tabstop>btn_edit</tabstop>
<tabstop>btn_delete</tabstop>
<tabstop>tabWidget</tabstop>
<tabstop>input_search_id</tabstop>
<tabstop>btn_search_id</tabstop>
<tabstop>edit_code</tabstop>
<tabstop>edit_count</tabstop>
<tabstop>table_components</tabstop>
<tabstop>edit_name</tabstop>
<tabstop>edit_description</tabstop>
</tabstops>
<resources/>
<connections/>
</ui>
Empaquetando aplicación
Instalar install auto-py-to-exe
pip install auto-py-to-exe
auto-py-to-exe
El comando resultado dado por auto-py-to-exec:
pyinstaller --noconfirm --onefile --windowed --icon "/home/xizuth/Projects/curso_python/codigos/curso_medio/project_final/assets/logo.ico" --name "component_store" --add-data "/home/xizuth/Projects/curso_python/codigos/curso_medio/project_final:project_final/" --hidden-import "peewee" --hidden-import "PySide6.QtWidgets" --add-data "/home/xizuth/Projects/curso_python/codigos/curso_medio/project_final:." "/home/xizuth/Projects/curso_python/codigos/curso_medio/project_final/main.py"
Nota: toma en cuenta se deben ajustar las rutas para tu sistema y usuario
Resultado
